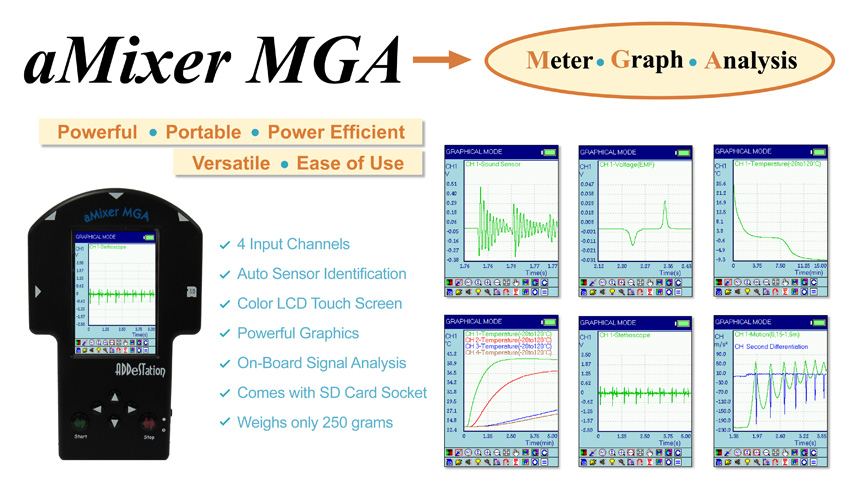

aMixer MGA
Meter • Graph • Analysis
Powerful, Portable, Power Efficient, Versatile, Ease of Use. 4 Input Channels, Auto Sensor Identification, Color LCD Touch Screen, On-Board Signal Analysis, SD Card Socket, Weighs only 250 grams.
Specifications
| Number of input channels | 4 channels |
| Internal Built-in Sensor | Temperature Sensor |
| Sampling Rate | up to 32,000 samples/sec |
| Battery | 10 days (1 data/10 mins) without external power |
| Power up time | 1 second |
| Auto Sensor Identification | Yes |
| On-Board Signal Analysis | Yes |
| Signal Generator | Yes |
| User Interface | Color LCD Touch Panel Display (3.2 inches) |
| SD Card Socket | Yes |
| Interface to computer | USB 2.0 |
| Weight | 240 g |

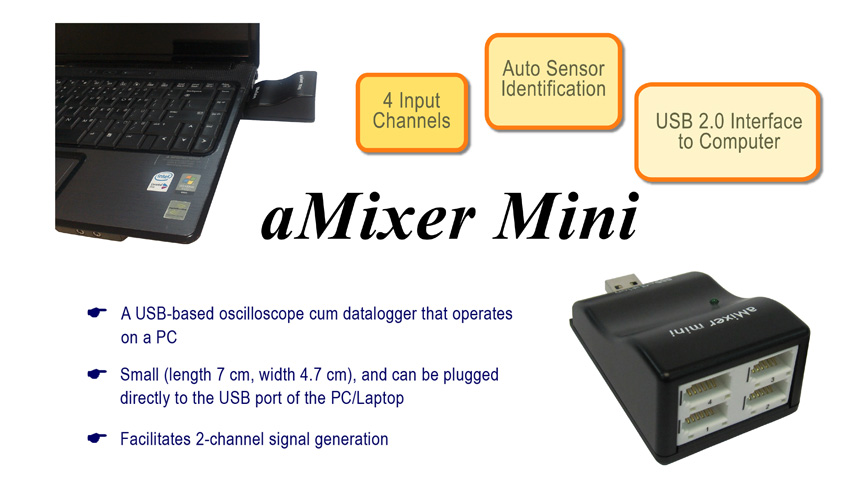

aMixer Mini
A USB-based oscilloscope cum datalogger that operates on a PC. Small (length 7 cm, width 4.7 cm), can be plugged directly to the USB port of the PC/Laptop. 4 Input Channels, Auto Sensor Identification, USB 2.0 Interface to Computer. Facilitates 2-channel signal generation.
Specifications
| Number of input channels | 4 channels |
| Sampling Rate | up to 20,000 samples/sec |
| Auto Sensor Identification | Yes |
| Interface to computer | USB 2.0 |
Wireless aMixer
Interface with iPad, Android Tablet, or PC via Bluetooth. 4 Input Channels, Auto Sensor Identification, LCD Screen that indicates instant measurements. Specially Designed for Schools already have iPad and/or Android Tablet.
Specifications
| Number of input channels | 4 channels |
| Interface | iPad, Android Tablet, or PC via Wifi |
| Auto Sensor Identification | Yes |
| Display | LCD Screen |
